Leak-proof performance has become a baseline expectation for modern drinkware. Whether it’s a coffee tumbler in a busy office, a sports bottle in a high-impact environment, or a kids’ cup tossed inside a school backpack, consumers expect “zero leakage” without giving much thought to the engineering behind it.
From a technical standpoint, however, leak prevention is a multi-layer engineering challenge. Material science, mechanical structure, pressure dynamics, and manufacturing tolerance must work in synchrony. True leak-proofing isn’t created by a single part but through a system-level design strategy.

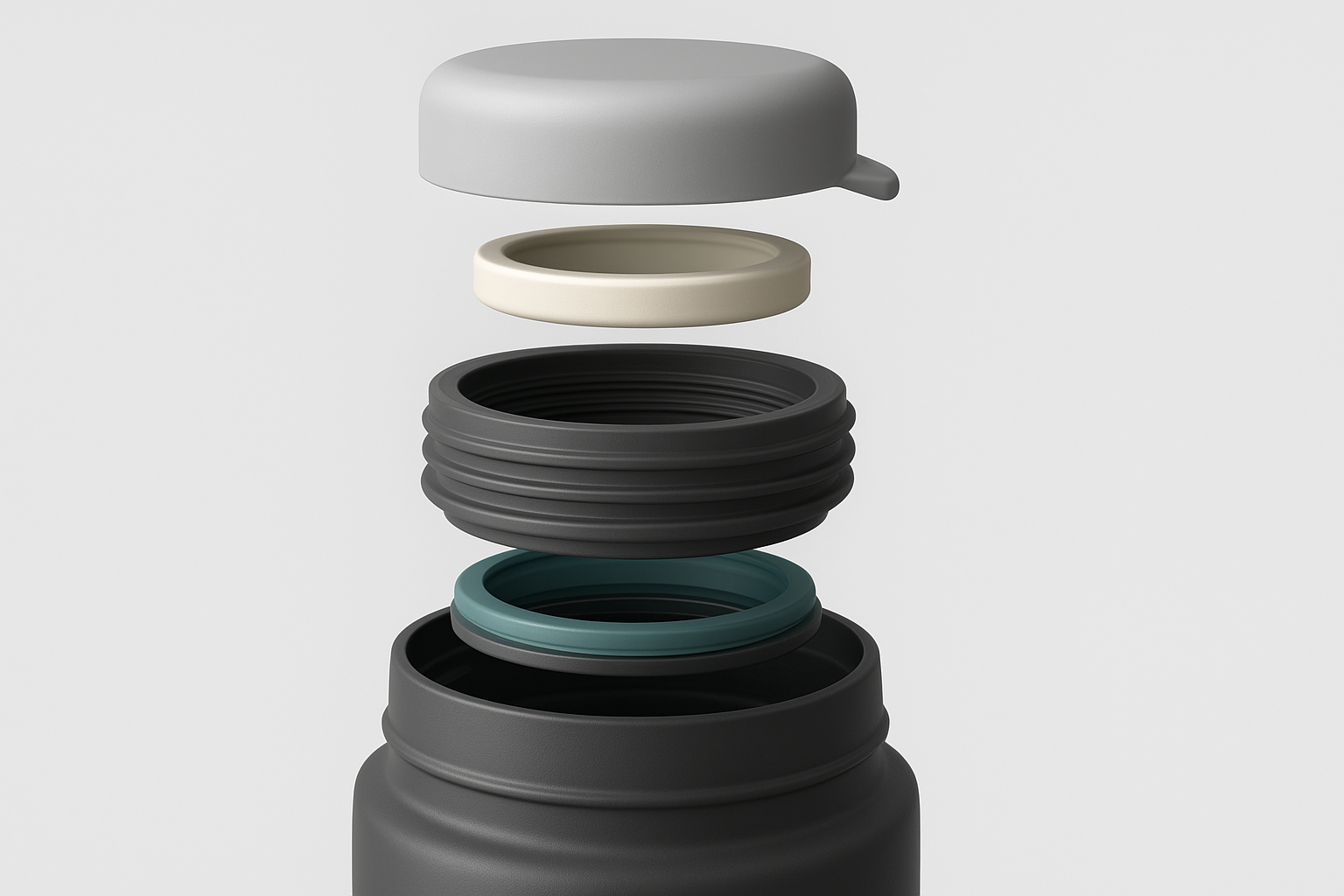

This article unpacks the engineering logic behind the three most important components in a leak-proof cup: silicone gaskets, thread mechanisms, and pressure-balance vents. Understanding how they work—and how they interact—provides a framework for product selection, R&D optimization, and long-term reliability assessment.
I. Why Leak-Proof Engineering Matters
Leakage is not merely a functional defect—it is a user-experience deal-breaker that directly impacts brand perception. The market has become increasingly saturated with reusable bottles, and differentiation often comes from subtle but critical engineering decisions.
Leak-proofing addresses three primary risks:
- Liquid escape caused by insufficient sealing
- Mechanical failure caused by low structural engagement
- Internal pressure causing overflow or cap deformation
Each issue maps to one or more engineering components. Leak-proof design is therefore a “system reliability” challenge, not an aesthetic one.
II. The Underlying Mechanics of Leak-Proof Systems
A robust leak-proof architecture must integrate three engineering principles:
1. Sealing (Surface Contact Integrity)
Achieved through compressible materials such as silicone, ensuring tight contact between lid and container.
2. Mechanical Locking (Structural Alignment)
Delivered via thread patterns that secure the cap through rotational engagement.
3. Pressure Regulation (Internal Airflow Management)
Enabled by vents that prevent pressure build-up or negative pressure collapse.
Failure in any one of these systems leads to leakage. Only by engineering synergy can a bottle withstand real-world use.
III. Silicone Gaskets: The Foundation of Liquid Sealing
Silicone gaskets are the first line of defense in leak prevention. They create a compressible barrier that fits between hard surfaces to block fluid escape.
1. Material Science Overview
Food-grade silicone has become the standard due to its:
- Elasticity
- Thermal stability (typically –40°C to 200°C)
- Chemical inertness
- Low compression set (resistance to permanent deformation)
Hardness levels (measured via Shore A scale) determine gasket behavior:
- Softer silicone (40–50A): better sealing but faster wear
- Harder silicone (60–70A): stronger support but requires higher closing force
The engineering challenge is achieving an optimal compression ratio—typically 10%–25%—to ensure long-term sealing without accelerated deformation.
2. Structural Design Variations
Silicone gaskets are not universal. Their geometry affects sealing performance:
- O-ring: general-purpose sealing
- U-shaped ring: improved stability and anti-slip performance
- Flat gasket: ideal for large contact surfaces
The gasket’s cross-sectional profile determines liquid resistance, durability, and manufacturing tolerance.
3. Performance in Real Use Cases
Silicone’s value becomes obvious in different consumer environments:
Children’s bottles
Flexible gaskets withstand frequent opening, drops, and shock.
Hot-beverage tumblers
Silicone maintains elasticity under heat but must be paired with pressure vents to prevent overflow.
Gym and outdoor bottles
High shock absorption prevents deformation during impact.
Poor-quality silicone results in yellowing, hardening, cracks, and inevitable leakage—highlighting the importance of premium materials and controlled molding processes.
IV. Thread Engineering: Mechanical Locking for Reliability
Thread engagement isn't just about “tightening a lid.” It plays a structural role that ensures stable compression on the gasket.
1. Key Engineering Parameters
Thread performance depends on:
- Pitch (distance between thread peaks)
- Thread angle (affects friction and load distribution)
- Engagement depth (how much of the thread actually locks)
- Lead-in guidance (prevents cross-threading)
The deeper and more consistent the engagement, the stronger the mechanical lock.
2. How Threads Contribute to Leak-Proofing
Threads deliver two critical functions:
1. Mechanical Compression
When twisted into place, threads push the lid downward, ensuring the silicone gasket forms a tight seal.
2. Positional Stability
Even under external stress—falling, squeezing, shaking—the thread structure keeps the bottle closed.
If the thread geometry is not precise, leakage occurs even with a high-quality gasket.
3. Application Scenarios
Sports and outdoor bottles
Deep, reinforced threads prevent loosening during impact.
Glass containers
Fine-pitch threads reduce stress concentration on fragile glass surfaces.
Stainless steel tumblers
Uses coarser pitches and thicker walls to ensure rugged durability.
Thread inconsistency remains a major failure point in low-cost drinkware due to poor mold precision and tolerance misalignment.
V. Pressure-Balance Vents: Managing Airflow for Leak Prevention
Pressure is an invisible but powerful force inside sealed containers. Without proper ventilation, even high-quality seals can fail.
1. Why Pressure Build-Up Happens
Temperature and drinking patterns cause fluctuations:
- Hot liquids → internal expansion → outward pressure → overflow or lid lift
- Cold liquids → negative pressure → suction effect → hindered drinking
A sealed bottle behaves like a micro-pressure chamber. Without a vent, leaks appear even if the gasket is perfect.
2. Engineering Structure of Pressure Vents
Effective pressure vents typically use:
- One-way silicone valve membranes
- Microscopic vent channels
- Strategic placement near the drinking outlet
Critical parameters include:
- Vent hole diameter
- Valve membrane thickness
- Flow rate tuning
A poorly designed vent becomes a “leak hole.” Sophisticated vent design ensures air passes through while liquid cannot.
3. Practical Use Advantages
For hot beverage tumblers
Ventilation prevents “backflow bursts” when pressure pushes liquid into the lid.
For straw bottles (children or adults)
Balanced airflow ensures smooth, effortless drinking without collapse.
For thermal flasks
Prevents deformation under rapid temperature shifts.
In high-tier drinkware, pressure vents are one of the most important yet least understood components.
VI. How These Three Systems Work as a Leak-Proof Ecosystem
Leak-proof engineering is a multi-layer architecture:
1. Silicone gasket
Provides micro-sealing at the liquid interface.
2. Thread system
Applies mechanical compression and ensures alignment.
3. Pressure vent
Controls air dynamics to maintain system stability.
When designed well, these components reinforce each other.
When designed poorly, one weak point causes total failure.
A systemic mindset is essential for modern drinkware R&D.
VII. Choosing the Right Leak-Proof Structure for Different Use Scenarios
Consumers often choose bottles by appearance, but engineers must design by scenario. Below is a breakdown of optimal selections:
1. Coffee/tea tumblers (hot liquids)
- Must include pressure-balance vents
- High-temperature silicone recommended
- Thick threads improve safety under expansion force
2. Kids' straw bottles
- Venting is essential for smooth suction
- Soft gaskets increase safety and comfort
- Anti-cross-thread design reduces incorrect closing
3. Outdoor/sports bottles
- Impact resistance is the key metric
- Deep, coarse threads maintain stability
- Thick gaskets compensate for shock deformation
4. Office and lifestyle bottles
- Precision threads improve user comfort
- Slim gaskets allow smoother closing
- Minimal venting unless used for hot beverages
Each environment stresses the components differently. Scenario-based engineering avoids overdesign or mismatched components.
VIII. Common Leak-Proof Failures and Engineering Improvements
Premium bottles fail for predictable reasons. Engineering teams often optimize based on these patterns.
1. Silicone gasket deterioration
Caused by heat cycles, chemical exposure, or over-compression.
Fix: Use higher-grade silicone, optimize compression ratio.
2. Misaligned threads
Causes uneven sealing and micro-gaps.
Fix: Improve mold precision, redesign lead-in structure.
3. Blocked pressure vent
Leads to overflow or vacuum lock.
Fix: Increase vent cross-section, use detachable or washable membranes.
4. Material warping
Especially common in PP lids exposed to heat.
Fix: Reinforce lid ribs, use higher-grade polymers.
Quality control standards such as leak-pressure testing and thermal cycling are essential for premium-grade reliability.
IX. Future Directions in Leak-Proof Technology
Leak-proof engineering is evolving alongside drinkware innovation.
1. Multi-material composite gaskets
Combining silicone with thermoplastic elastomers for improved durability.
2. Smart pressure-regulation systems
Thin-film membrane technology used in medical devices is entering consumer drinkware.
3. CNC-grade thread precision for plastic lids
More brands adopting higher-precision molds to reduce defects.
4. Magnetic locking with hybrid sealing
Combines user convenience with engineering stability.
Leak-proof design is transitioning from “basic functionality” to “premium user experience.”
X. Conclusion
Leak-proof performance is not accidental. It is the result of rigorous material science, mechanical design, and pressure-control engineering. Silicone gaskets ensure sealing, threads secure structural alignment, and vents regulate airflow—forming a multi-layer defense system.
For brands, understanding these components elevates product design and reduces fail rates. For consumers, it means bottles that integrate convenience, safety, and reliability.
The engineering behind leak-proof systems is becoming more sophisticated and data-driven, and it will remain one of the most critical differentiators in next-generation drinkware.
