How Air Gaps Improve Insulation Performance

Introduction: The Invisible Space That Makes Insulation Work

When people think about insulation, they often picture thick materials, dense walls, or advanced composites. In drinkware design, however, one of the most critical components of insulation is something you cannot see or touch: empty space.

Inside an insulated bottle, the air gap between the inner liner and the outer shell plays a fundamental role in slowing heat transfer. This invisible layer is not a design afterthought. It is the foundation upon which modern thermal performance is built.

Understanding how air gaps improve insulation performance helps explain why double-wall bottles outperform single-wall designs, why vacuum insulation exists at all, and why insulation is as much about structure as it is about material choice.

What Is an Air Gap in Insulated Drinkware?

Definition of Air Gaps

In insulated drinkware, an air gap refers to the enclosed space between the inner container that holds the liquid and the outer shell that users touch. This space may contain normal air, reduced-pressure air, or be fully evacuated in vacuum-insulated designs.

The key feature of an air gap is separation. It physically separates the hot or cold liquid from the external environment by inserting a low-conductivity layer between them.

Air Gap vs Solid Wall Design

Single-wall bottles rely entirely on the material itself—usually metal or plastic—to resist heat transfer. Because metals conduct heat efficiently, temperature changes occur quickly.

By contrast, bottles with air gaps introduce a thermal barrier that dramatically slows this process. Even before advanced technologies like vacuum insulation are introduced, the presence of an air gap alone significantly improves thermal performance.

Heat Transfer Basics: Why Air Is a Poor Conductor

Thermal Conductivity Explained Simply

Thermal conductivity describes how easily heat moves through a material. Materials with high thermal conductivity allow heat to pass quickly. Materials with low thermal conductivity slow heat transfer.

Metals rank among the best conductors of heat. Air, on the other hand, is one of the poorest conductors commonly encountered in daily life.

This difference is the fundamental reason air gaps work.

Air vs Metal Heat Transfer Rates

In a metal wall, heat flows rapidly because energy moves efficiently between tightly packed atoms. In air, molecules are far apart, and energy transfer between them is slow.

By placing air between two metal walls, insulation design exploits this contrast. Heat that moves easily through metal suddenly encounters resistance when it reaches the air layer, slowing overall heat flow.

How Air Gaps Reduce Heat Transfer

Limiting Conduction Through Still Air

Conduction is the direct transfer of heat through a material. In a sealed air gap, the air remains mostly still. Still air has very low thermal conductivity, making it an effective insulator.

As long as the air does not circulate, heat transfer through conduction remains slow.

Suppressing Convection Inside the Gap

Convection occurs when warmer air rises and cooler air sinks, creating circulation. This movement transfers heat more efficiently than conduction alone.

Well-designed air gaps are narrow and sealed, preventing large-scale air movement. By limiting space and eliminating airflow, convection is suppressed, preserving the insulating effect.

Reducing Radiative Heat Exchange

Radiation allows heat to travel through empty space via electromagnetic waves. While air gaps do not stop radiation entirely, they reduce its impact by increasing distance and enabling reflective surface treatments on inner walls.

This layered resistance—conduction, convection, and radiation—makes air gaps a powerful insulation strategy.

From Air Gaps to Vacuum Insulation

The Evolution of Insulated Bottle Design

Early insulated containers relied on simple air gaps. These designs already performed better than single-wall bottles, but engineers soon recognized a limitation: air itself still conducts some heat.

The next step was removing air altogether.

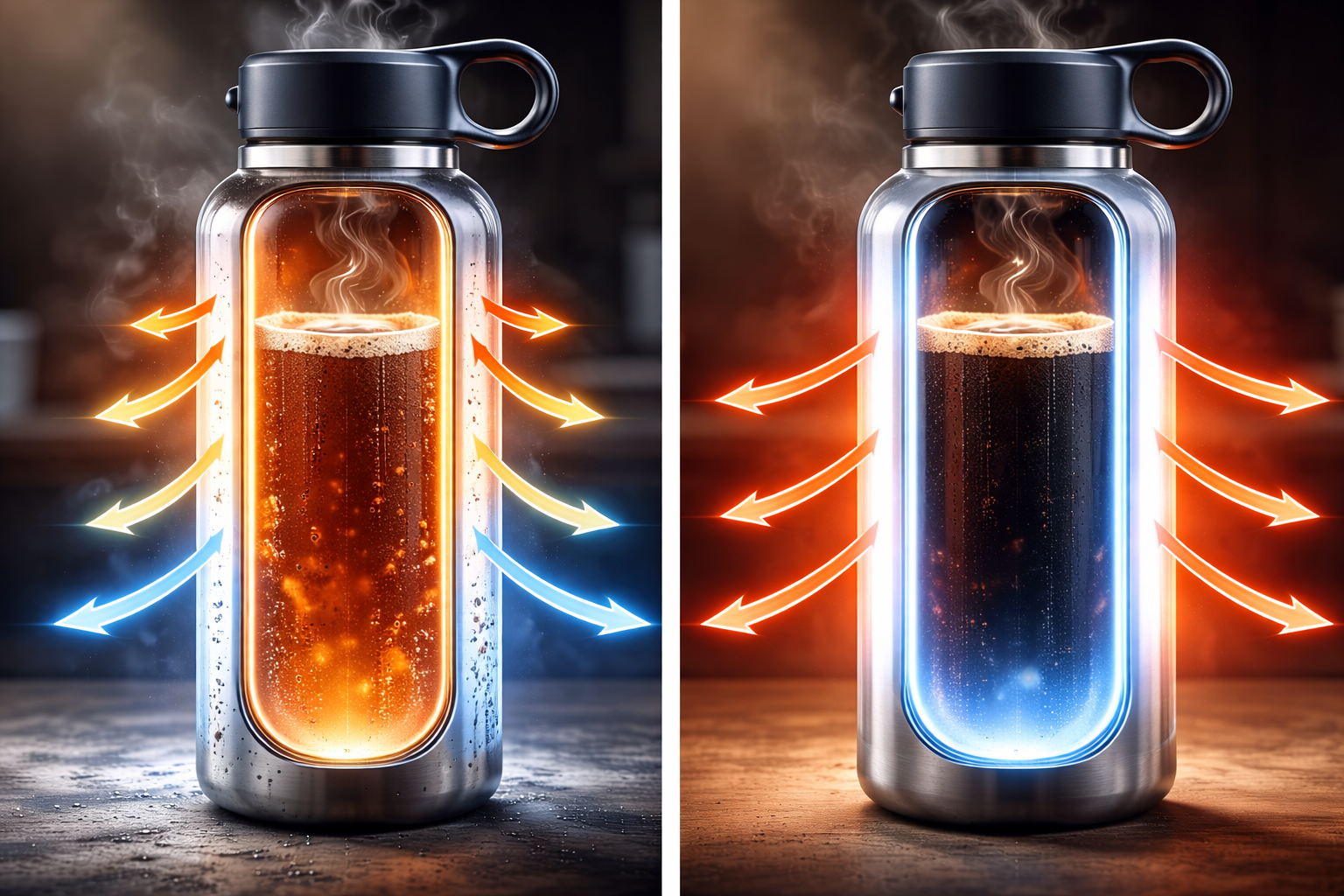

Why Vacuum Performs Better Than Air Alone

Vacuum insulation eliminates conduction and convection entirely by removing air molecules. With no medium for heat transfer, only radiation remains.

This is why vacuum-insulated bottles outperform air-gap-only designs. However, vacuum insulation still depends on the same principle: separation through space.

The air gap concept is the foundation. Vacuum is simply the optimized version.

The Role of Gap Thickness and Uniformity

Why Gap Size Matters

An air gap that is too thin allows heat to bridge the space more easily. An air gap that is too thick increases the risk of internal convection currents forming.

Effective insulation requires a carefully controlled gap size that minimizes both conduction and convection.

Manufacturing Challenges

Maintaining a uniform air gap around a complex cylindrical shape is not trivial. Variations in thickness can lead to uneven insulation performance and structural stress.

Precision manufacturing ensures that the insulating space performs consistently across the entire bottle.

Real-World Performance Impacts

Hot Drink Retention

For hot beverages, air gaps slow the outward flow of heat. This reduces rapid temperature loss, especially during the critical early hours after filling.

While heat still escapes over time, the air gap dramatically extends the usable warmth period.

Cold Drink Retention

For cold beverages, air gaps slow the inward flow of environmental heat. This is particularly effective in warm climates, where external temperatures would otherwise quickly warm the contents.

Air gaps help maintain cold temperatures by resisting heat gain from the surroundings.

Air Gaps vs Other Insulation Methods

Foam Insulation

Foam insulation traps air in tiny pockets. While effective in some applications, foam adds bulk and lacks the structural precision required for slim drinkware.

Solid Multi-Layer Walls

Layering solid materials improves insulation slightly but cannot compete with air-based separation. Solid layers still conduct heat, even when stacked.

This is why air gaps remain the dominant approach in drinkware insulation.

Common Misunderstandings About Air Gaps

“More Air Means Better Insulation” Is Not Always True

Beyond a certain thickness, air gaps allow convection to occur, reducing insulation effectiveness. Controlled space matters more than volume.

Air Gaps Are Not Empty Space

Air gaps contain matter and still allow some heat transfer. They are not equivalent to vacuum insulation, which removes the medium entirely.

Understanding this distinction helps clarify performance differences between bottle types.

Practical Takeaways for Consumers

When evaluating insulated bottles, structural design matters as much as material. A well-executed air gap indicates thoughtful engineering and long-term performance.

Consumers benefit most when insulation is treated as a system, not a single feature.

Conclusion: Insulation Starts With Space

Insulation is not about adding more material. It is about intelligently separating temperatures.

Air gaps create this separation by exploiting air’s poor thermal conductivity and limiting heat transfer pathways. From basic double-wall bottles to advanced vacuum-insulated designs, space remains the central principle.

In insulated drinkware, what you do not see often matters more than what you do.
